High Quality BW60/10 Drilling Mud Pump Max Flow Rate 600L/min
Machine Description
The BW600 mud pump is equipped with drilling equipment to drill holes with mud. During drilling, mud pumps inject mud and water into the well to coat the well walls, lubricate drilling tools, and bring cuttings to the surface. It is suitable for geological core drilling and exploration drilling below 1500 meters, and can also be used for water well drilling 300-500 meters deep
BW600/10 Mud Pump has the advantages of compact construction, light weight,readily movable and easy to be operated etc. This mud pump can be driven by electric motor, diesel engine and hydraulic motor according to the requirement of the customer in order. If need, we can also equip wheels for you, it can help you move in the worksite.
Technical Parameters
| Model | BW600/10 |
| Cylinder diameter | 100mm |
| Piston Stroke | 110 mm |
| frequency of stroke | 232/162/109/76times/min |
| Flow rate | 600/415/280/195L/min |
| Pressure | 3.5/5/7.5/10Mpa |
| Power input | 55KW |
| Diameter of suction pipe | 127mm (5”) |
| Diameter of discharge pipe | 63.5 mm (2-1/2”) |
| Overall dimensions (LxWxH) | 1500X890X1230mm |
| Weight | 1400kg |
Characteristics
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Two cylinder liners with different diameters are optional, with a large flow and pressure adjustment range and a wide range of applications;
3. This series of products has a large export volume and has been exported to more than 20 countries and regions such as Europe, America, and Southeast Asia. It has been widely used in geology, coal, construction, metallurgy, chemical industry, railway, water conservancy, petroleum and other industries in China.

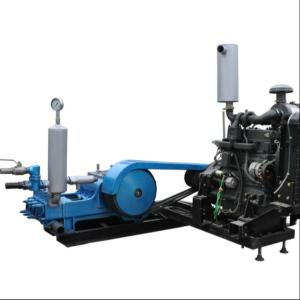

Machine Pictures
