20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine

Brand Name : RanCheng

Model Number : RCQ520

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 40" container

Name : Rotary Drilling Rig

Model : RCQ520

Drilling deepth : Max 20m

Kelly bar diameter : 315mm

Dimension : 10500X2650X3350mm

The total weight : 23.5T

Contact Now

20m Drilling Depth Hydraulic Rotary Drilling Rig 205 Horsepower Diesel Engine

Machine Introduction

The RCQ520 hydraulic rotary drilling rig adopts leading pressure drilling technology, which can easily reach the maximum rotary drilling depth of 20 meters, and has a wide drilling diameter range, ranging from 500 mm to 1500 mm.

When it comes to construction, this hydraulic pile driver is known for its efficient drilling capabilities. After the construction is completed, its ability to move quickly to the next construction site provides a strong guarantee for the efficient advancement of the project. Its flexible, convenient and efficient attributes make it a favored special piling machinery and equipment in the construction of national high - speed railways.

This small rotary drilling rig has a wide range of applications and can be used in various stratum types, including soil layers, clay layers, fill layers, silt layers, silt layers, and strata containing pebbles, gravels, and strongly weathered rocks. Its role is indispensable in many engineering projects such as building construction, high - speed railway contact network support, slope protection piles, urban construction, civil construction, new rural construction, power grid transformation, landscaping and other projects.

Technical Parameters

Model RCQ520 hydraulic rotary drilling rig
Working mode Hydraulic oil cylinder pressure
Drilling diameter Φ500-Φ1500mm
drilling depth 20m
Kelly bar diameter 315mm
Dimension 10500X2650X3350mm
The total weight 23.5T
Powerhead max output torque 100KN.m
Rotary speed 10-50r/min
Pressurized oil cylinder max pressure 100KN
Pressurized oil cylinder max lifting force 100KN
Main winch max lifting force 120KN
Main winch max lifting speed 70m/min
Assisting winch max lifting force 30KN
Assisting winch max lifting speed 50m/min
Pressurized oil cylinder max stroke 2500mm
Mast sidewards inclination ±4°
Mast forwards inclination
Max working pressure 28Mpa
pilot pressure 3.5Mpa
Travelling speed 5km/h
Working hight 12800mm
Working width 2500-3000mm
Diesel engine power 151KW ,Cummins ,water cooling ,turbocharger ,

Machine Advantages

First of all, it is small and flexible, with light tonnage, easy operation, fast movement and convenient transition. Secondly, it is economical and affordable, with low investment and quick results, bringing irreplaceable economic advantages. Use well - known brand components to ensure product quality and reliability. In terms of work, it is highly efficient and energy - saving, and the work efficiency is 50 % higher than similar products; the large - diameter hydraulic motor improves hole - forming efficiency, and it also has the advantages of energy saving and high stability. Stable balance is another advantage, allowing the machine to work smoothly, operate 360 ​​degrees, and maintain central balance. Intelligent operation and delay setting reduce parts vibration and improve operating comfort and stability. Advanced design improves performance and reliability. Safety is fully guaranteed, with the function of synchronized return rope operation, anti - collision device and rear view function. Mechatronics design improves reliability. Energy saving and environmental protection, providing a good working environment and meeting the requirements of energy saving and environmental protection. The comprehensive economic benefits are outstanding and the economic benefits are significant.

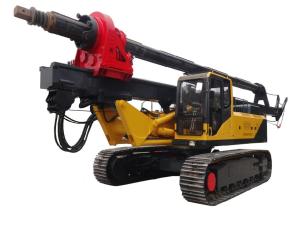

Machine Pictures

20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine

20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine

20m Drilling Depth Hydraulic Rotary Well Drilling Rig 205 Horsepower Diesel Engine
